Which transformer is used for transmission?

For high-voltage transmission systems, the use of the wye-connected transformer is more economical because the voltage across the phase of each winding is a factor of 1.73 less than the voltage between the lines. If the neutral point is grounded, there is no need to insulate it for the line voltage.

Then, which transformer is used at the end of transmission line?

Power companies use step-up transformers to boost the voltage to hundreds of kV before it is transmitted down a power line, reducing the current and minimizing the power lost in transmission lines. Step-down transformers are used at the other end, to decrease the voltage to the 120 V used in household circuits.

Likewise, what is a transmission transformer? Power transformers are used for transmission as a step up devices so that the I2r loss can be minimized for a given power flow. These transformers are designed to utilize the core to maximum and will operate very much near to the knee point of B-H curve (slightly above the knee point value).

In this manner, why transformer is used in transmission line?

Transformers are devices that can increase or decrease current or voltage that is being transmitted through the transmission lines in the form of alternating current. To reduce costs in the transmission lines, we require the minimum amount of energy losses in the transmission lines.

Where are Star Delta transformers used?

It is commonly employed for power supply transformers.

This type of connection is commonly employed at the substation end of the transmission line. The main use with this connection is to step down the voltage.

Related Question Answers

What type of transformer is used in secondary transmission?

Step down Transformer is used in both Electronics and Electrical domain. A step-down transformer converts the primary voltage level to a lower voltage across the secondary output.

Are transmission lines Delta or Wye?

No, Transmission lines are not connected in Star. They are always connected in Delta. I wrote the answer of this question on Quora, please check below. Electrical power transmitted at an overhead transmission line is always has a “Delta Connectionâ€.

Which transformer is used at the end of transmission line that is at the substation where the voltage as to be step down?

It is called primary transmission of power. At the end point of primary transmission of power, in the substation, the step down transformers are used to step down the voltage level to 132 kV.

Which transformer is used at the end of a transmission line ie at the substation where the voltage has to be stepped down?

A power transformer is used in a substation to step up or step down the incoming and outgoing voltages. The transformers at distribution substations always step down the incoming transmission voltages to lower voltages used at the distribution level.

Why do we use Delta Star in transformer?

Delta-Star Connection of Transformer

The main use of this connection is to step up the voltage i.e. at the begining of high tension transmission system. It can be noted that there is a phase shift of 30° between primary line voltage and secondary line voltage as leading.

Why are transformers used?

Transformers are employed for widely varying purposes; e.g., to reduce the voltage of conventional power circuits to operate low-voltage devices, such as doorbells and toy electric trains, and to raise the voltage from electric generators so that electric power can be transmitted over long distances.

What are the two types of transformers?

There are two types of potential transformers; the conventional wound type (or electromagnetic type) and the capacitor voltage (potential) transformer. For voltages exceeding 100 kV (phase) the conventional type of potential transformer becomes extremely expensive owing to the insulation requirements.

How many types of transformer are there?

There are three primary types of voltage transformers (VT): electromagnetic, capacitor, and optical. The electromagnetic voltage transformer is a wire-wound transformer.

Why high voltage is used for transmission of electrical power?

The primary reason that power is transmitted at high voltages is to increase efficiency. As electricity is transmitted over long distances, there are inherent energy losses along the way. High voltage transmission minimizes the amount of power lost as electricity flows from one location to the next.

Why are transformers used in power distribution?

Transformers help improve safety and efficiency of power systems by raising and lowering voltage levels as and when needed. They are used in a wide range of residential and industrial applications, primarily and perhaps most importantly in the distribution and regulation of power across long distances.

Which transformer is used in generating station?

Hence in the power transmitting station of the power plant, a step up transformer is used. The type of current that is transmitted from the power station is the alternating current which is also known as the ac current.

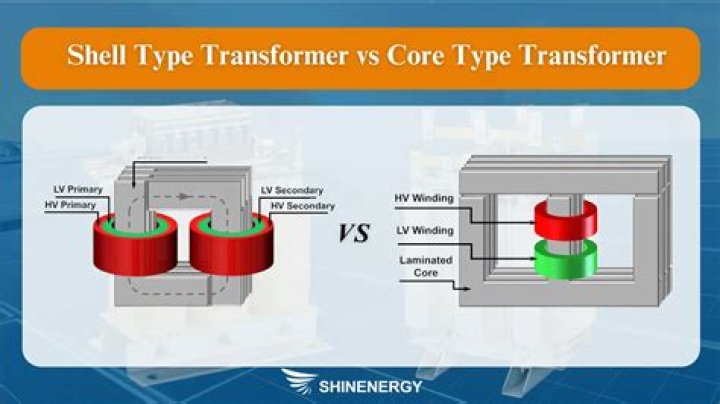

What is core type transformer?

Core type Transformer

In core type transformers, winding is positioned on two limbs of the core and there is ONLY one flux path and windings are circumventing the core. These transformers are quite favorite in High voltage practical applications like Distribution, Power, and Auto-Transformers.

Which connection is used for long transmission?

System. Most transmission lines are high-voltage three-phase alternating current (AC), although single phase AC is sometimes used in railway electrification systems. High-voltage direct-current (HVDC) technology is used for greater efficiency over very long distances (typically hundreds of miles).

Why Delta Connection is used in transmission line?

So its better to use 3 wire system(Delta) than four wire systems(star) as it reduces cost and also The delta winding allows third-harmonic currents to circulate within the transformer as it is closed in nature, and prevents third-harmonic currents from flowing in the transmission line".

What is kVA transformer?

The kVA unit represents kilovolt-amperes, or 1,000 volt-amperes. A transformer with a 1.0 kVA rating is the same as a transformer with a 1,000 VA rating and can handle 100 volts at 10 amps of current.

What is current transformer and potential transformer?

The current transformer and potential transformer (also called voltage transformer) are both measuring devices. A CT lowers the current signals for measurement purposes, while a PT lowers high voltage values into lower ones. The transformers are designed to measure whether power systems are both accurate and safe.

What is stepup and stepdown transformer?

A transformer that increases the voltage from primary to secondary (more secondary winding turns than primary winding turns) is called a step-up transformer. Conversely, a transformer designed to do just the opposite is called a step-down transformer.

What is insulation transformer?

Definition: This is the material that is used to provide electrical insulation between transformer windings at different voltage levels and also between the energized parts and the metal tank of the transformer. Generally, for large transformers used in power applica.

How can you tell if a transformer is Delta or Wye?

In a Wye system, 120V can be measured from any hot wire to neutral. Additionally, 208V is measured from hot wire to hot wire. This is also the same for Delta configurations. By comparison, a Delta circuit inside a transformer appears as a triangle with equal sides, resulting in a closed path.

What is the difference between star and delta transformer?

In star connection, the line current is equal to the phase current, whereas in delta connection the line current is equal to root three times of the phase current. In star connection, phase voltage is low as 1/√3 times the line voltage, whereas in delta connection phase voltage is equal to the line voltage.

How does a Delta Wye transformer work?

A delta-wye transformer is a type of three-phase electric power transformer design that employs delta-connected windings on its primary and wye/star connected windings on its secondary. A neutral wire can be provided on wye output side. An equivalent term is delta-star transformer.

Why star-star is not used in transformers?

This Type of Transformer is rarely used due to problems with unbalanced loads. It is economical for small high voltage transformers as the number of turns per phase and the amount of insulation required is less.

What is an open delta transformer?

An open delta transformer is a three phase transformer that only has two primary and secondary windings, with one side of the delta phase diagram “openâ€. More common is critical loads being wired with three single phase transformers in a banked configuration.

Which CT is used for Delta-Star connected power transformer?

For ∆-Y power transformer Y-∆ CT connection is used. The Low voltage side is connected is connected with Current transformers that are star connected . Why this cross connection is done and how it prevents from operating on external faults and zero sequence current.

What is a Delta Delta transformer?

A Delta Delta is a 3-phase connection without a neutral you're going the same voltage on the primary to the same voltage of the secondary but it's used for high current applications like stated in this article.Jul 6, 2012

Which is better Star or Delta Connection?

Delta Connection is generally used in distribution networks. Since insulation required is less, Star Connection can be used for long distances. Delta Connections are used for shorter distances. Delta Connections are often used in applications which require high starting torque.Apr 3, 2021

What is tertiary winding of transformer?

An additional winding along with the primary and secondary windings in a transformer in order to provide path for the harmonics produced in the transformer. Such transformers are called Tertiary transformers or Three winding transformers.
