What is the type of engine with opposed cylinder?

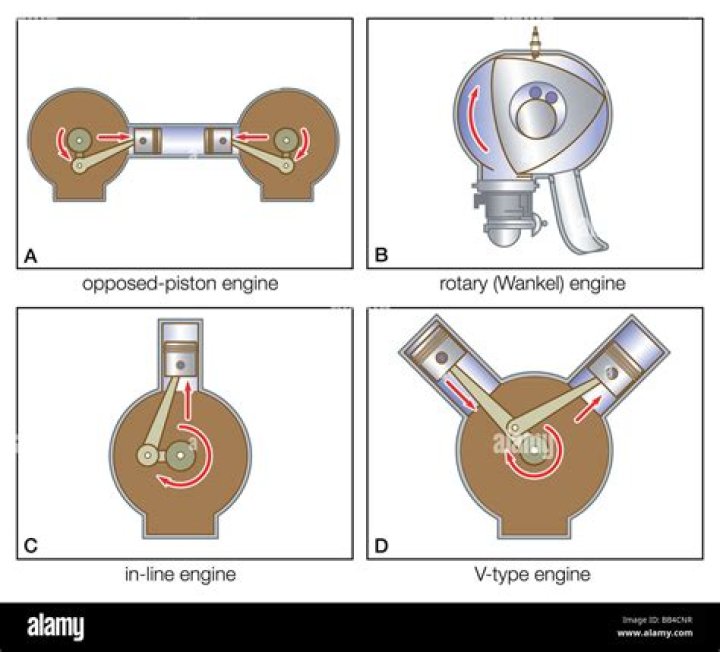

An opposed-piston engine is a piston engine in which each cylinder has a piston at both ends, and no cylinder head. Petrol and diesel opposed-piston engines have been used mostly in large-scale applications such as ships, military tanks, and factories.

Correspondingly, what are the 3 types of engines?

Types of engines and how they work

• Internal combustion engines (IC engines)
• External combustion engines (EC engines)
• Reaction engines.

One may also ask, what engine has the cylinders opposite of each other with the crankshaft between all the cylinders? A flat engine, also known as a horizontally opposed engine, is a piston engine where the cylinders are located on either side of a central crankshaft. A flat engine should not be confused with the opposed-piston engine, in which each cylinder has two pistons sharing a central combustion chamber.

Also, who Makes opposed-piston engine?

The 10.6L opposed-piston engine was developed as part of a demonstration project, led by Calstart and funded by the California Air Resources Board, to demonstrate a low-CO2, ultralow-NOx, opposed-piston heavy-duty diesel engine.

Why are piston engines opposed?

The opposed-piston engine has been around for over 100 years and is more efficient in almost every way. The engine has no traditional valves, cams, or camshafts, and no head, so it's simpler and cheaper to manufacture, assemble and operate.

Related Question Answers

Are there any V4 engines?

The V4 engine is less common compared to straight-four engines. However, V4 engines have been used in automobiles, motorcycles, and other applications.

What are the 2 types of engines?

We can broadly classify engines into two categories those are Internal Combustion Engine and External Combustion Engine.

What is CC in engines?

The capacity of a motorcycle's engine is measured in terms of cubic capacity. Cubic capacity, also known as “cc" of vehicles, usually ranges between 50cc to 1500cc. The engine capacity is the space/ volume available inside the tank to accommodate the air-fuel mix for burning.

What is I type engine?

Inline engines (I) are taller and narrower, and when they are mounted transversely, allow designers to create a vehicle with a smaller front end. V-type engines (V) sit lower with an improved center of gravity, and this design is more space-efficient with a greater numbers of cylinders.

How many cylinders does AV engine have?

description. The V type has two rows of cylinders, usually forming an angle of 60° or 90° between the two banks. V-8 engines (eight cylinders) are usually of the 90° type. Some small six-cylinder aviation engines have horizontally opposed cylinders (see above Opposed-piston engines).

What is the most common engine?

Inline engines are the most common form of engine, and are found on most hatchbacks and small family cars.

How efficient are opposed-piston engines?

Research has shown two-stroke opposed piston engines to be wildly efficient. 3 cylinder designs are the most efficient, and it's possible to achieve brake thermal efficiencies as high as 55%, a massive improvement for road car engines.

Are opposed-piston engines more efficient?

Theory suggests that an opposed-piston engine has an efficiency advantage because, since there are no cylinder heads, less heat is lost to the cooling system. Think about a conventional combustion chamber in which the surfaces consist of a piston crown, a short cylindrical circumference, and a cylinder head.

What engine does not use pistons?

A pistonless rotary engine is an internal combustion engine that does not use pistons in the way a reciprocating engine does. Designs vary widely but typically involve one or more rotors, sometimes called rotary pistons.

How are opposed engines cylinders numbered?

The numbering of the cylinders of the opposed engine begins with the right rear as 1 and the left rear as 2. Thus, all even-numbered cylinders are in the front row. This is the normal standard method of numbering engine cylinders, but some manufacturers do follow a different pattern.

Is InLine better than V?

Inline or parallel engines have pistons placed literally in parallel positions to each other. A V engine also produces more torque at lower rpms because of the power stroke coming from two sides of the crankshaft. An inline engine is more balanced than its V counterpart because of the equal weight distribution.

Why do cars not use 2 stroke engines?

Disadvantages of the Two-stroke

There are four main reasons: Two-stroke engines don't last nearly as long as four-stroke engines. The lack of a dedicated lubrication system means that the parts of a two-stroke engine wear a lot faster. Two-stroke oil is expensive, and you need about 4 ounces of it per gallon of gas.

What is an InLine engine?

InLine Engine is a type of engine design that is very basic and conventional. In this type of engine construction, the cylinders are placed in a straight line, as shown in the diagram. As all the cylinders are in a straight line, manufacturers sometimes refer to this engine as a 'Straight Engine.

Do diesel engines have cylinders?

The diesel engine is an intermittent-combustion piston-cylinder device. It operates on either a two-stroke or four-stroke cycle (see figure); however, unlike the spark-ignition gasoline engine, the diesel engine induces only air into the combustion chamber on its intake stroke.

What are the 5 types of cylinder arrangements?

The common cylinder arrangements forms are mainly inline (L or I), V-type (V), W-type (W), horizontally opposed (H), rotor (R) and VR-type (VR)). Inline engines are generally abbreviated as L. For example, L4 means inline 4 cylinders.

What are the cylinder arrangements?

There are three arrangements which may be used for an engine. In-line engine The cylinders are arranged in a single row, one behind the other. Vee engine The cylinders are arranged in two rows at an angle to one another. The angle for two-, four- and eight-cylinder engines is usually 90 .

Which is the engine having cylinders in 90 each of 4 cylinders?

The 4 cylinder engine generates power every 90-degree rotation of the crankshaft. The 3 cylinder engine, on the other hand, makes power every 120 degrees.

What's wrong with boxer engines?

The problem stems from a faulty part in its horizontally-opposed engines, also called "boxer" engines, which align cylinders on either side of a single crankshaft in a flat way. The automaker first used the engine in the Subaru 1000 in 1966, and now uses it in every model.

What is V angle?

The "V-angle" (or "included angle") between the cylinder banks varies significantly between engines. Some engines have used a V-angle of 180 degrees (the same angle as a flat engine), such as several Ferrari V12 engines.

What is a boxer engine vs inline?

Inline engines feature pistons that sit upright and move straight up and down. This means the engine block is taller overall and has a higher center of gravity than a SUBARU BOXER^® engine, which features pistons laid flat. The upright layout of inline engines means they can vibrate more during operation.

Why is it called boxer engine?

The 'Boxer' engine is so called because the movement of the engine's pistons resemble the movement of a boxer's fists in the horizontal plane. However, unlike the boxer's fists that both move in the same direction, half of the 'Boxer' engine's pistons move in the opposite direction.

What is an opposed engine configuration?

An opposed-piston engine is like a Flat/boxer engine in that pairs of pistons are co-axial but rather than sharing a crankshaft, instead share a single combustion chamber per pair of pistons. The crankshaft configuration varies amongst opposed-engine designs.

How many types of piston engines are there?

There are two main types of piston engine: the spark-ignition engine and the diesel engine. The diesel engine is more efficient but it also generates more pollution. There are also two common engine cycles: the two-stroke cycle and the four-stroke cycle.

Why do cars use 4 stroke engines?

4-stroke engines deliver a good balance of power, reliability and efficiency. When it comes to emissions, 4-strokes separate each event mechanically, which reduces unburned fuel emissions. It also separates oil from fuel, which significantly reduces carbon monoxide emissions.

What is OPOC engine?

The OPOC engine is a two-stroke reciprocating internal combustion engine in which each cylinder has a piston at both ends, and no cylinder head or mechanical valvetrain. The opposed cylinder design has two cylinders, one on each side of the crankshaft, each with two pistons, for mechanical balance.

Do diesel trucks have pistons?

Like a gasoline engine, a diesel engine has cylinders, a crankshaft, connecting rods, and pistons to transfer the energy of the fuel from a linear to rotary motion. The primary difference lies in the way they ignite the fuel/air mixture.
