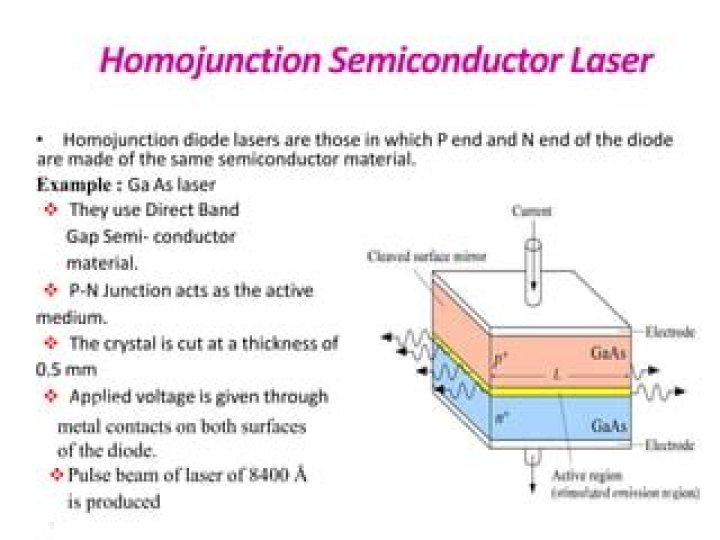

A simple homojunction semiconductor laser consists of a forward biased pn junction in which an inversion is obtained. Also, what is homojunction and heterojunction?
homojunction means the device consist of two or more junctions based on one semiconductor material with difference doping (intrinsic and extrinsic) heterojunction means the device consist of two or more junctions based on two or more difference semiconductor materials with difference doping (intrinsic and extrinsic)
One may also ask, what is homojunction solar cell? In a homojunction solar cell, the p and n-type semiconductors for window and absorbing layers are fabricated by doping the different elements into the same material. While in a heterojunction solar cell, the window layer and absorbing layer are fabricated using different materials [12,13].
In this way, what is semiconductor diode laser?
A semiconductor laser (LD) is a device that causes laser oscillation by flowing an electric current to semiconductor. The mechanism of light emission is the same as a light-emitting diode (LED). When the two meet at the junction, an electron drops into a hole and light is emitted at the time.
Why do bands bend?
Band bending occurs when an electric field is applied to a semiconductor. When there isn't an electric field being applied, the energy bands are not a function of position. Therefore, when an electric field is applied, energy is being supplied to the carriers in the material.
Related Question Answers
What is heterojunction in semiconductor?
A heterojunction is the interface that occurs between two layers or regions of dissimilar crystalline semiconductors. These semiconducting materials have unequal band gaps as opposed to a homojunction. What is heterostructure physics?
A heterostructure is defined as a semiconductor structure in which the chemical composition changes with position. The simplest heterostructure consists of a single heterojunction, which is an interface within a semiconductor crystal across which the chemical composition changes. What is the difference between ohmic contact and rectifying contact?
In semiconductor manufacturing technology, an ohmic contact is a metal to semiconductor contact (or connection) of very low resistance that is independent of applied voltage (that is, current through that contact follows Ohm's Law), while a rectifying contact allows high current to flow (that is, it has low resistance) What is the principle of semiconductor laser?
Principle: When a p-n junction diode is forward biased, the electrons from n – region and the holes from the p- region cross the junction and recombine with each other. During the recombination process, the light radiation (photons) is released from a certain specified direct band gap semiconductors like Ga-As. What is the principle of diode laser?
The laser diode works on the principle that every atom in its excited state can emit photons if electrons at higher energy level are provided with an external source of energy. There are basically three phenomena by which an atom can emit light energy and that are Absorption, Spontaneous Emission & Stimulated emission. How long do laser diodes last?
approximately 50,000 hours
Is diode laser painful?
Laser hair removal is by no means a one-and-done-type treatment to dispel errant hairs from your skin. Some Diode Lasers are painful, some are messy, and most of them are time consuming and are associated with high cost but zero longevity. What is inside a laser diode?
A laser diode, (LD), injection laser diode (ILD), or diode laser is a semiconductor device similar to a light-emitting diode in which a diode pumped directly with electrical current can create lasing conditions at the diode's junction. Laser diodes can directly convert electrical energy into light. How much does a laser diode cost?
Bare Laser Diode Chips and COC Devices ($50~$500): This is the most basic laser form. However, it isn't typically available since this is usually designed for volume OEM customers (i.e. someone purchasing 1000's and integrating into other systems). What is the principle of semiconductor?
Unlike intrinsic types, extrinsic, or doped, semiconductors have added particles that are specially used for altering a material's electrical conductivity properties. In silicon, the most common semiconductor material, each atom shares four valence electrons through covalent bonds with the four nearest atoms. What is the wavelength of diode laser?
The continuous-wave, semiconductor diode laser emits radiation at wavelengths of 810 and 940 nm in the near-infrared spectrum. The radiation is delivered by a flexible fiber coupled with an aiming beam. The diode laser penetrates tissue to a depth of 1 to 3 mm, and it is suitable for vascular lesions. How do you test a laser diode?
Set Up the Laser Diode Test Load Using Constant Current Mode Set the driver in Constant Current mode. Connect the multimeter, in voltage mode, between the Current Monitor (IMON) and common Ground (GND) pins. Turn the Current Limit trimpot fully off, usually 12 full rotations counterclockwise (CCW). What is forbidden energy gap?
Forbidden energy gap is the gap between valence band and conduction band. In other words the energy required by an electron to jump from valence band to conduction band. What is a band edge?
The edges of the bands refer to the highest energy state that an electron can exist at in the valence band, and the lowest energy an electron can have in the conduction band. Why does band bending occur in Mosfet?
When you apply a gate voltage on MOS devices, electrons near the surface of the semiconductor will gain or lose energy, which is reflected by the bending of the bands (the same goes for holes), because their energy changed. This is the Field Effect, or the FE part of the MOSFET. What is energy band structure?
The energy band structure is the relationship between the energy and momentum of a carrier in a solid. For an electron in free space, the energy is proportional to the square of the momentum. What is a band graph?
A Band chart is a Line chart with added shaded areas to display the upper and lower boundaries of the defined data ranges. The shaded areas are the Bands. Band chart is also referred to as Range chart, High-Low Line chart or Corridor chart. What is Fermi level in semiconductor?
Fermi level is the highest energy state occupied by electrons in a material at absolute zero temperature. As the temperature is increased, electrons start to exist in higher energy states too. Fermi level is also defined as the work done to add an electron to the system. What is EI in energy band diagram?
Band diagrams for a donor, where EI is the energy level of the impurity state, the energy needed to create a free electron in the conduction band is Eg − EI, ED is the electron binding energy to the ionized donor, and EI is the bound-to-free transition energy. What is an energy band?
An energy band is a range of electron energy in a solid so dense with electron states that it appears to be continuous. Energy bands are at the heart of electronic band structure which holds that there are stationary states of electrons in a solid with well defined, constant (quantized) energy.
