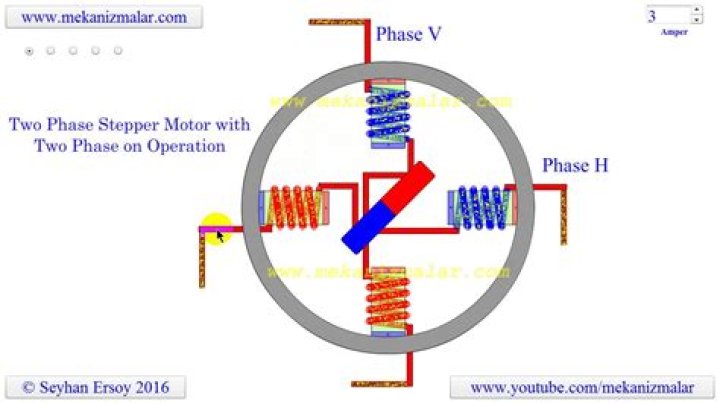

What is a two phase stepper motor?
There are two key differences between 2-phase and 5-phase stepper motors. The first is mechanical. A step motor consists of basically two parts, a stator and a rotor. In a 2-phase motor the stator is made up of 8 magnetic poles with small teeth, while the 5-phase motor stator is made up of 10 magnetic poles.
Keeping this in view, how does a 2 phase stepper motor work?
By energizing the phases with alternating the polarity, all the coils can be put to work turning the motor. A two phase bipolar motor has 2 groups of coils. A 4 phase unipolar motor has 4. A 2-phase bipolar motor will have 4 wires - 2 for each phase.
Furthermore, what does a stepper motor do? Stepper motors are DC motors that move in discrete steps. They have multiple coils that are organized in groups called "phases". By energizing each phase in sequence, the motor will rotate, one step at a time. With a computer controlled stepping you can achieve very precise positioning and/or speed control.
In respect to this, how many phases does a stepper motor have?
4 phases
What is 4phase stepper motor?
Hybrid stepper motors are composed primarily of two parts, the stator and the rotor. The rotor in turn is comprised of three components: rotor 1, rotor 2 and the permanent magnet. Since there are 4 – phases, A through D, the motor is called a 4 – phase hybrid stepping motor.
Related Question Answers
How long do stepper motors last?
4.8 yearsHow do steppers work?
Generally the electromagnets in a stepper motor work in pairs, with each opposing pair of magnets switching on together to make a north pole at the same time, followed by the magnets at right angles, which also work together.What is 2 phase stepper motor?
There are two key differences between 2-phase and 5-phase stepper motors. The first is mechanical. A step motor consists of basically two parts, a stator and a rotor. In a 2-phase motor the stator is made up of 8 magnetic poles with small teeth, while the 5-phase motor stator is made up of 10 magnetic poles.What is stepper motor with diagram?
A stepper motor is an electromechanical device which actuates a train of step movements of shaft in response to train of input pulses. The step movement may be angular or linear. There is one to one relationship between an input pulse and step movement of the shaft.Are all NEMA 17 motors the same?
A NEMA 17 stepper motor is a stepper motor with a 1.7 x 1.7 inch (43.18 x 43.18 mm) faceplate. The NEMA 17 is larger and generally heavier than for example a NEMA 14, but this also means it has more room to put a higher torque. However, its size is not an indication of its power.Are all stepper motors the same?
Stepper motors are different from ordinary DC motors in at least four important ways. The first difference you notice is that they have no brushes or commutator (the parts of a DC motor that reverse the electrical current and keep the rotor—the rotating part of a motor—constantly turning in the same direction).How much voltage does a stepper motor need?
Stepper motors have a rated voltage and current. A typical stepper motor like our NEMA 17 might have a rated voltage of 2.8 Volts and a maximum current of 1.68 Amps. This basically means if you hook it up to 2.8 Volts it will draw 1.68 Amps.Can stepper motors run continuously?
Stepper motor's rotation is controlled by exciting coils in correct order and polarity. The motor moves exactly one small predefined angle (called a step) each time coil(s) in motor get excited. But motor will not run continuously- it holds the position while powered.Are stepper motors AC or DC?
Drives for stepper motors can have inputs that are either ac or dc. However, stepper motors themselves function as ac motors (they are generally considered to be asynchronous machines) because even a dc input is converted to a square wave to drive the individual motor windings.What is the difference between a servo motor and a stepper motor?
the stepper motor is used in applications requiring about 2000 rpm or less where you need a lot of torque at the low end, where as a servo motor is typically used for your higher speed applications that are more dynamic and require more acceleration and deceleration typically 2000 rpm and higher.How is a stepper motor controlled?
Stepper motors are DC motors that move in discrete steps. They have multiple coils that are organized in groups called "phases". By energizing each phase in sequence, the motor will rotate, one step at a time. With a computer controlled stepping you can achieve very precise positioning and/or speed control.How much does a stepper motor cost?
Given the price, I don't think I'd mind if it only really did 75% of the "rated" torque. Only 3 left in stock - order soon. I'm using this stepper with an Arduino and a DRV8825 Stepper driver. Works great.Top Selected Products and Reviews.
| List Price: | $19.99 |
|---|---|
| Price: | $13.99 |
| You Save: | $6.00 (30%) |
How strong is NEMA 17?
This is one of strongest bipolar Nema 17 stepper motor with 1.8 deg. step angle (200 steps/revolution). Each phase draws 2.1A, allowing for a holding torque up to 65Ncm(92oz.in).How do I identify my stepper motor?
If the motor has four or more winding connections, then it is likely a stepper. If it has four wires, it's a bipolar only stepper. If it has five wires, it's a unipolar only stepper. If it has six or eight wires, it can be used as either.Are stepper motors High Torque?
High Torque Stepper Motors from 0.01 to 50Nm. NEMA08,NEMA17,NEMA23,NEMA34,NEMA43,NEMA53. A series of step motors that have been designed by JVL for use with the entire range of JVL Step Motor Drivers and Controllers. They are high torque step motors especially made for mini- and microstep operation.What are stepper motors good for?
Stepper motors are good for three things—positioning, speed control, and generating low-speed torque. With their precise incremental movement, stepper motors allow excellent control of their rotational speed suitable for robotics and process automation.What is the cost of stepper motor?
Stepper Motors| Name | Product Id | Price |
|---|---|---|
| High Torque Bipolar Stepper Motor | NR-SM-BP-HT-01 | Rs.118.00 |
| Bipolar Stepper Motor (16PU-M202) | NR-SM-BP-M202-01 | Rs.118.00 |
