What is 50% load on a generator?
The run time of a fuel powered generator is usually expressed at a half load (50% capacity) or a quarter load (25% capacity) with a full tank.
Then, how do you measure load on a generator?
You can estimate the total running load by adding up the running wattages of all items to be powered. If the name plate show only amps and voltage the wattage can estimated by multiplying volts times amps to calculate watts. Amps times Volts equals Watts. The watts total divided by 1000 is kW.
One may also ask, what size generator do I need for 50 amps? 4,000 watt generator
Secondly, what is the minimum load for a generator?
mends loading the generator set to a minimum of 30 percent load for approximately 30 minutes for every four hours of light load operation.
What happens when a generator is Underloaded?
Now, the outcome, if you put less load on a generator. Running engine under low loads results in soot formation which is due to poor combustion and low combustion pressures and temperatures. Also the unburnt fuel residues out of poor combustion, clogs the piston rings. This will further result in drop in efficiency.
Related Question Answers
Is it OK to run generator without load?
As a result, generators follow a rule of internal combustion engines – they must have a certain load attached to them in order to operate properly. Running generators on low or no load can have a range of results that can lead to problems, from inefficient running to serious damage or even complete failure.What happens when load on generator increases?
As the load on the generator is increased, an increase in current flow causes the voltage to drop. The excitation system senses this decrease in voltage and increases the strength of the magnetic field to return the voltage to the desired level.How do you calculate load?
Take the total load and divide it by the maximum recommended load to get a percentage. For example, if the total loads add up to 800 watts and this is a 20 amp circuit, then the load usage is 800 watts divided by 1920 watts which equals 0.416 or 42 percent.What size generator do I need to run a refrigerator and freezer?
You can run the most critical household equipment with a generator rated at 5,000 to 7,500 watts. These include things like a well pump, refrigerator and freezer, and lighting circuits. A generator with around 7500 running watts can run all these appliances at once.How many amps is a 25 kw generator?
GENERATOR AMP RATINGS - THREE PHASE EXTENDED| kVA | kW | 208 |
|---|---|---|
| 25 | 20 | 69.5 |
| 31 | 25 | 86.8 |
| 38 | 30 | 104.2 |
| 44 | 35 | 121.6 |
What will a 750w generator run?
Depending on their wattage output, generators will run anything from a small lamp to a number of large appliances. For example: running a 100 watt light bulb, a 200 watt slow cooker, a 1,200 watt refrigerator with a startup wattage of 2,900 watts and a 750 watt TV would require 3,950 watts.How often should a generator be load tested?
In most cases, it is recommended that non-mission critical generators are tested at 30% to 50% of their maximum load for thirty minutes at least once per month. Critical diesel generators could be tested much more frequently, but this wholly depends on individual requirements and industry regulations.Why is my generator not loading?
The single most frequent service call for generator failure is related to battery failure. The most obvious cause for a low coolant level is either an external or internal leak. Most often, oil leaks are not in fact leaks but the result of “wet stacking” (or “engine slobber”) caused by excessive no-load run time.What is wet stacking on a generator?
Wet stacking is a condition in diesel engines in which unburned fuel passes on into the exhaust system. The word "stacking" comes from the term "stack" for exhaust pipe or chimney stack. In diesel generators, it is usually because the diesel engine is running at only a small percentage of its rated output.What is low load running?
Low load operations of diesel engines are defined as engine operations below 40% of maximum continuous rating. The mechanisms of low load lead to a cycle of degradation which means that diesel engines that run at low loads for longer periods of time can become irreversibly damaged.What is generator load?

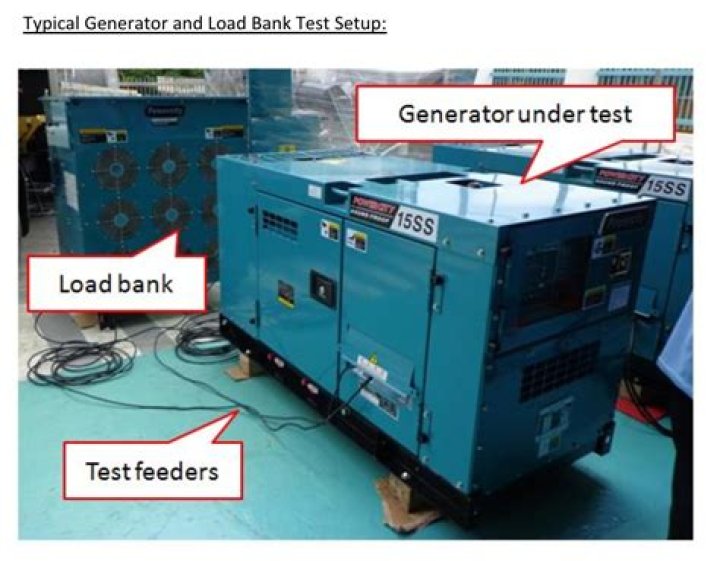

Load Banks are electrical devices that are temporarily wired into a generators AC voltage output. Load is applied to the generator through switches that are calibrated to produce specific Kilowatt (Kw) output.How can I reduce the fuel consumption of my generator?
How To Reduce The Fuel Consumption For Diesel Generators- Regular maintenance.
- Don't overload the generator.
- Don't underload the generator.
- Remove carbon deposits.
- Ensure the correct cooling temperature.
- Purchase a suitable generator.
- Buy from us.
How a generator is rated?
The capacity of a synchronous generator is equal to the product of the voltage per phase, the current per phase, and the number of phases. It is normally stated in megavolt-amperes (MVA) for large generators or kilovolt-amperes (kVA) for small generators.How do you determine the size of a generator?
How to Size a Generator- Form a list of all items that will be powered.
- Determine the starting wattage (energy needed to turn it on) and running wattage (energy needed to operate it) for each piece of equipment.
- Calculate your total power requirement by adding up these kW or KVA figures.
Is it bad to run a generator out of gas?
Running Out of Gas is Risky and Damaging to Your Portable Generator. Allowing your generator to put out significant power until it runs out of fuel can be damaging to your generator, and possibly some of the appliances in your home. Running out of gas may cause your generator's coils to lose their magnetism.What is the minimum load ratio for diesel generator?
Diesel engines run better when loaded, and it is recommended to always keep the generator at 50 percent of maximum load or higher,with a minimum 30 percent load.Will a 2000 watt generator run a air conditioner?
You might think that an air conditioning unit could also fit on your generator since smaller units only use around 1,200 watts of power. But, the surge requirements on most air conditioners – typically 3,000 watts or more – far outpace the surge capacity of any 2,000-watt generators.How many watts does it take to run 50 amps?
12,000 wattsWhat can you run on a 8000 watt generator?
The Generac GP8000E with Electric Start rated for 8000-watts continuous power and 10-kilowatt surge capacity. Equivalent to four typical 15-amp convenience circuits in a modern home plus additional power to start air conditioners or pumps.What can you run on 50 amps?
But you can run a hair dryer, microwave oven, toaster oven, plus an air conditioner and a bunch of lights all at the same time from a 50-amp pedestal outlet and still have power to spare. So if you park your RV next to your house, you should consider having a real pedestal outlet installed by an electrician.How many amps is a 8000 watt generator?
Finding out how many amps a generator can operate is a simple formula. An 8 kW or 8,000-watt generator will operate 8,000 watts for 240 volts, which totals just more than 33 amps per phase, meaning that it will operate just more than 66 amps at 120 volts. A typical single-phase residence has two phases.Will a 30 amp generator run a 50 amp camper?
RV electrical system (30 Amp vs 50 Amp)An RV's electrical system may be designed with either a 30 Amp or 50 Amp service. In a 30 Amp system, the maximum wattage would be 120 volts x 30A which is 3600 watts. For a 50 Amp system, the total wattage would be 2 x 120 x 50A, which is 12000 watts.
