How does a vernier work?
A vernier scale is a visual aid to take an accurate measurement reading between two graduation markings on a linear scale by using mechanical interpolation; thereby increasing resolution and reducing measurement uncertainty by using vernier acuity to reduce human estimation error.
Moreover, how does a vernier calliper work?
The vernier scale has finer divisions; in a standard basic vernier like in Fig 2., 10 divisions of the vernier scale correspond to 9 divisions of the main. The vernier divisions are marked 0 through 9 and then 0 again. This means that the divisions on the vernier are separated by 0.9mm.
Similarly, how do you use a vernier scale? Reading a Vernier Scale Measurement on a Circular Vernier
- Read the main scale. (Last whole or half mark increment visible)
- Read the secondary scale measurement. (Value of the scale that lines up with the center line of the main scale)
- Add the two measurements together.
Likewise, people ask, what is the purpose of vernier scale?
Measuring more precisely than could be done unaided when reading a uniformly divided straight or circular measurement scale
How accurate is a vernier?
Vernier scales are usually used to measure objects up to a few centimetres across and to an accuracy of +/- 0.1mm. If a more precise reading is needed, then a micrometer can be used. These tools usually have accuracy of 0.01mm and are used to measure objects no bigger than a few millimetres.
Related Question Answers
What is the formula of least count?
Least count formula for an instrument- Here is the least count formula for an instrument having a secondary scale along with the main scale.
- Least Count Of Secondary Scale = Value of 1 secondary scale division / Total secondary scale divisions.
- Least count of main scale= .5/10 CM= .05 CM= .5 mm.
What is meant by least count?
In the science of measurement, the least count of a measuring instrument is the smallest and accurate value in the measured quantity that can be resolved on the instrument's scale. Any measurement made by the instrument can be considered repeatable to no less than the resolution of the least count.What is meant by Vernier constant?
Vernier constant is defined as the difference between the value of one main scale division and one vernier scale division. It is also known as the least count of vernier calliper i.e the minimum length that can be measured accurately using this instrument.What is vernier caliper simple definition?
: a measuring device that consists of a main scale with a fixed jaw and a sliding jaw with an attached vernier.How many types of vernier callipers are there?
three typesWhat is a height gauge called?
A height gauge is a measuring device used for determining the height of objects, and for marking of items to be worked on. Devices similar in concept, with lower resolutions, are used in health care settings (health clinics, surgeries) to find the height of people, in which context they are called stadiometers.What is least count of Screw gauge?
A screw gauge of 100 divisions will move the cap scale along the main scale by 1/100 of mm-0.01 mm. This is the minimum value up to which a screw gauge can measure and is known as its least count. Or it is defined as the ratio between the pitch of the screw and the number of divisions on the circular scale.Where will be the vernier scale is present?
Where will be the vernier scale is present? Explanation: It has a base plate which is attached to the main body. Circular plate contains vernier scale.How many scales are there in Vernier calliper?
Vernier calipers have two types of scales- a fixed main scale and a moving Vernier scale. The main scale is normally in millimetres or 1/10th of an inch. Vernier calipers score well over standard rulers because they can measure precise readings up to 0.001 inches.What are the main parts of vernier caliper?

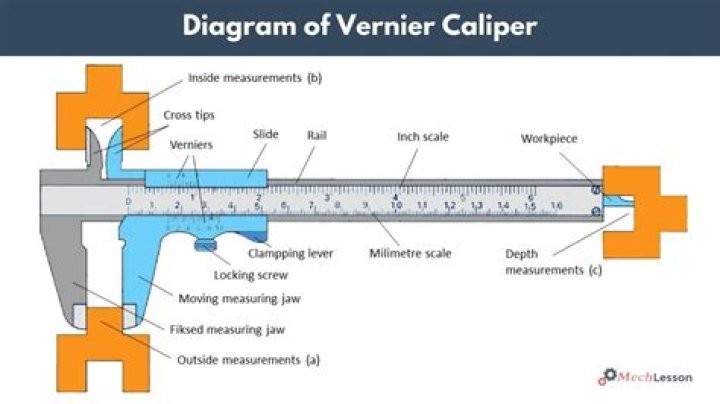

Thus, the main parts of a vernier caliper are:- Internal jaws.
- External jaws.
- Main arm.
- Sliding arm.
- Depth measuring probe.
- Locking Screw.
How do you read a vernier scale angle?
The top number on the outer scale gives the angle to the right. This will give the angle of the arc that is drawn from the right of the theodolite to the object. The bottom number will measure the complementary arc to the left. The sum of the right and the left angle should always be equal to 360.What is the difference between main scale and vernier scale?
The main scale reading is the first reading on the main scale immediately to the left of the zero of the vernier scale (3 mm), while the vernier scale reading is the mark on the vernier scale which exactly coincides with a mark on the main scale (0.7 mm). The reading is therefore 3.7 mm.How is zero error corrected?
Positive Zero Error (Vernier calipers)If the zero on the vernier scale is to the right of the main scale, then the error is said to be positive zero error and so the zero correction should be subtracted from the reading which is measured.
How do you read a vernier caliper 0.05 mm?
The vernier scale can read to 0.05 mm. So using both scales, the width can be read to the nearest 0.005 cm (or 0.05 mm). To measure the width, you read the top and bottom scale as follows: Find where the 0 mark of the vernier scale lines up on the main scale.How many divisions are there in Vernier scale?
10 divisionsWhy do we use zero correction?
Why do we us zero correction in vernier caliper? It cannot be “zeroed” before taking a reading, unlike, say, digital or dial calipers. So, we need to take a zero measurement first, and compensate for the zero error. Note, that for new, good quality vernier calipers, that that error will be less than readable.What four 4 maintenance activities should be carried out on a vernier caliper to ensure accuracy?
How To Handle And Maintain Vernier Calipers For Error Prevention- Brush Off Any Dirt.
- Do Not Pair Vernier Caliper With Other Tools.
- Use It For The Purpose It Serves.
- Do Not Expose It To Temperature Changes.
- Be Careful With Your Location Of Taking Measurement.
- Do Not Try To Repair It Yourself.
- Clean Up After Every Use.
Why is vernier caliper better than ruler?
Vernier calipers can measure accuracy to one-hundredth of a millimeter and one thousand of an inch. With a vernier caliper, you can make more precise measurements than you could with regular rulers. On a vernier caliper, there are two types of scales.Which vernier caliper is best?
List of Top 10 Best Digital Vernier Caliper in India at Low Prices- #6) JW- Digital Venier Caliper-
- #7)ANY JEW95VC200 Digital Venier Caliper-
- #8)KRISTEEL Digital Venier Caliper-
- #9)MITUTOYO Digital Venier Caliper.
- #10)Vinca DCLA-0650 Digital Caliper-
- #11)EAGems Digital Caliper-
- #12)iGaging IP54 Digital Caliper-
What is more accurate than a ruler?
?In conclusion, drawing from the data collected, the caliper is a more accurate measuring tool than the ruler. This was as expected because the ruler forces one to eyeball the spaces between the millimeters, while the caliper has the Vernier scale to compensate for that, resulting in a more accurate measurement.Which is more accurate vernier caliper or screw gauge?
Answer: As compare to Vernier calipers, screw gauge is more precise because the least count of Vernier calipers is 0.1 mm and for screw gauge it is 0.01 mm. So, a screw gauge can measure more precisely than a Vernier caliper.How do you hold a vernier caliper?
Step 1: Holding the CaliperThis is the proper way to hold a caliper. Use your thumb to slide the jaws open and closed. Yup, another tool that was totally designed for righties. Use the locking screw at the top if you want to set a dimension on the caliper and then check parts against your setting.
