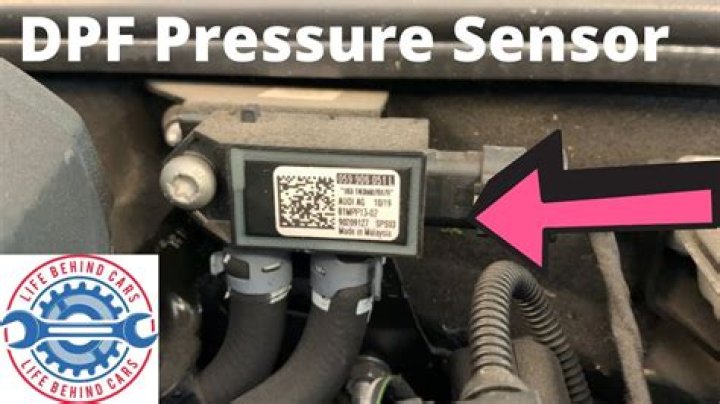

How do you test a DPF pressure sensor?

If everything passes physical inspection, you can test the DPF differential pressure sensor using a multimeter set to 20V and a pressure gauge. With the battery on and engine off, connect the multimeter ground to the negative battery terminal and run a quick plausibility by checking the voltage of the battery.

Hereof, how does a DPF pressure sensor work?

∆P sensor measures the pressure drop across a DPF. A DPF pressure drop increases with increase in the soot mass accumulated in the DPF. Small soot mass accumulation results in lower DPF pressure drop, while high soot mass accumulation would yield higher DPF pressure drop.

Additionally, how do I know if my DPF is bad? Don't ignore a warning light

If you ignore a DPF warning light and keep driving in a relatively slow, stop/start pattern, soot will build up in the filter until your car goes into 'restricted performance mode' to prevent damage. If you let it get this bad: Driving at speed alone won't be enough.

Regarding this, what are the symptoms of a bad DPFE sensor?

Symptoms of a Bad or Failing EGR Pressure Feedback Sensor

• Engine performance issues. One of the first symptoms of a problem with the EGR pressure sensor is engine performance issues.
• Failed emissions test. Another symptom of a potential problem with the EGR pressure sensor is a failed emissions test.
• Check Engine Light comes on.

Can I bypass my DPF filter?

While it's not illegal to remove a car's DPF, it is illegal to drive without it if one should be fitted. It's believed some drivers whose DPFs become blocked are simply bypassing the filters by removing them rather than paying for a replacement, which typically costs around £1,000.

Related Question Answers

What triggers DPF regeneration?

They came up with a system in which active regeneration is activated when the amount of soot gathered in the DPF reaches a certain level. When the soot gathered reaches this amount, it triggers the process of post combustion fuel injection which increases the temperature of the exhaust.

What does DPF sensor do?

Your DPF sensor is a crucial part of your exhaust system. It monitors the levels of soot emitted by your engine. A working sensor ensures your exhaust is working well, keeping you and the planet healthy.

What does a DPF differential pressure sensor do?

A differential pressure sensor is an electronic sensor that measures back pressure before and after the DPF and determines the level of soot contained within the DPF.

Can you clean a DPF sensor?

A DPF pressure sensor is vital to the longevity of the DPF, and if the DPF becomes completely obstructed, the regeneration process will not fix it. It will need to either be removed and professionally cleaned or replaced, both options on average costing thousands of dollars.

What is inside a DPF?

The honeycombed inner structure is covered with a layer of a chemical catalyst that contains small amounts of precious metals, usually platinum or palladium. To reduce the particulate matter or soot from the exhaust, you need to raise the combustion chamber temperature high enough to reduce the PM's from forming.

Can a blocked DPF damage the engine?

Driving the vehicle with a blocked DPF can seriously damage your engine / turbo and it's not uncommon to have to replace a turbo when the warning light has been ignored for extended periods. The ash residue which remains after successful regeneration cannot be removed and will eventually fill the filter.

Does a blocked DPF cause smoke?

Black or grey smoke may look bad, but it may not actually be the worst news. While this is an issue for your fuel economy, black DPF smoke likely means that there is an issue with your fuel injection, a diesel particulate filter blockage, return line or pressure regulation.

Can you bypass a DPFE sensor?

So unless the DPFE sensor is physically BROKEN and in itself has become an exhaust leak, bypassing will not improve gas mileage.

How do you test for DPFE?

How to Test the DPFE Sensor

1. Open the hood of the vehicle.
2. Disconnect the two vacuum hoses from the sensor by giving them a firm tug.
3. Turn the ignition key to the "On" position.
4. Connect the negative (black) multimeter lead to a ground point, such as the negative battery terminal.
5. Allow the multimeter to register the voltage.

How much is a DPFE sensor?

DPFE Sensor Replacement Cost

This can lead to legal problems and also shorten the life of your engine. Depending on your particular car, replacing the DPFE sensor along with the EGR valve should cost between $150 and $500 including labor, which also depends subjectively on where you live.

What would causes a DPFE sensor to melt?

The delta pressure feedback of EGR (DPFE) sensor was burned up for having too much back pressure on the engine. As the pressure builds up, the engine exhaust temperature rises and will heat us the tubes that the DPFE registers and will cause it to melt.

Can you still drive with a bad EGR valve?

A clogged or malfunctioning EGR valve can disrupt the vehicle's air-fuel ratio, which can cause engine performance issues such as a reduction in power and fuel efficiency. The vehicle may also stall or hesitate while accelerating.

How much is a EGR sensor?

The average cost for EGR pressure feedback sensor replacement is between $136 and $147. Labor costs are estimated between $45 and $56 while parts are priced at $91. This range does not include taxes and fees, and does not factor in your unique location. Related repairs may also be needed.

What does DPFE sensor mean?

Differential Pressure Feedback of EGR

How much does it cost to replace EGR sensor?

Yes, your car can run without it, but it should not run without it. It will cost you between $150 and $700 to get your EGR valve replaced by a mechanic. If you're interested in just getting the parts on your own, you can head to AutoZone and buy a new one at prices that range from as low as $40 to as high as $500.

Where is the EGR pressure sensor located?

Locate the EGR valve pressure sensor on the firewall of the vehicle. The pressure sensor is normally near the center, between the master brake cylinder and heater hoses on the firewall.

Can I clean a DPF myself?

Don't DPFs clean themselves? In theory, yes. “Passive Regeneration” or if appropriate Active DPF regeneration will take place as part of a healthy diesel engine running cycle, but active regeneration can fail once a blockage reaches a certain level. Sometimes a “forced” regeneration may be carried out by a mechanic.

Is it OK to drive with DPF light on?

Can you ignore the DPF light and carry on driving? Technically yes, but we would not recommend it. If you ignore the DPF light and continue driving, the build-up of soot will soon reach a point whereby your car has to enter 'limp-home' mode in order to prevent any damage to the engine.

How far do I need to drive to clean DPF?

To make sure that the regeneration takes place, most manufacturers suggest that every few hundred miles, the car is driven for a period of more than 15 minutes at a consistent speed in excess of 40mph. Doing this should clear the filter.

How quickly can a DPF clog up?

It is much more normal for DPFs take 10k miles to become blocked. However, this only happens if the owner NEVER takes their car for a run. Once a week, once a fortnight, or even once a month, a 30–60 minute run at a constant 3–4k RPM will ensure it doesn't get blocked.

How do you clean the DPF on a motorway?

Warm up the engine to operating temperature, then drive it for 15 minutes at constant speed on a motorway. Aim to keep the revs above 2000rpm for this period. The heat generated will help clean the DPF filter and the cars Regeneration cycle will usually kick in under these circumstances.

How do you manually regenerate a DPF?

To kick off a manual DPF regeneration you should

1. Put the vehicle in neutral.
2. Put on the hand brake.
3. Leave the pedals alone!
4. Press and hold the DPF button for 2 seconds or longer.

How long does a DPF filter last?

A DPF can last up to around 100,000 miles if maintained properly. After the car has exceeded that mileage, you could be looking at paying a large amount of money for a replacement - so always properly check MoT and service records when buying a used car.

How do I know if my DPF is regenerating?

You will know whether active regeneration is taking place by the following symptoms:

1. Engine note change.
2. Cooling fans running.
3. A slight increase in fuel consumption.
4. Increased idle speed.
5. Deactivation of automatic Stop/Start.
6. A hot, acrid smell from the exhaust.

How much does it cost to clean DPF filter?

Now we have DPF costs to add to the list! Replacing a DPF can easily cost $4000 to $8000, and sometimes more, it's a big cost…
