Remember the three step process: - Find the Thevenin Resistance by removing all voltage sources and load.
- Find the Thevenin Voltage by reconnecting the voltage sources.
- Use the Thevenin Resistance and Voltage to find the total current flowing through the load.
Besides, how do you calculate RTh and VTh?
Calculate RTh = VTh / IN. Alternate method (for circuits that consist only of independent sources and resistors). 1. Using whatever techniques are appropriate, calculate the open- circuit voltage at the port of the circuit: voc = VTh.

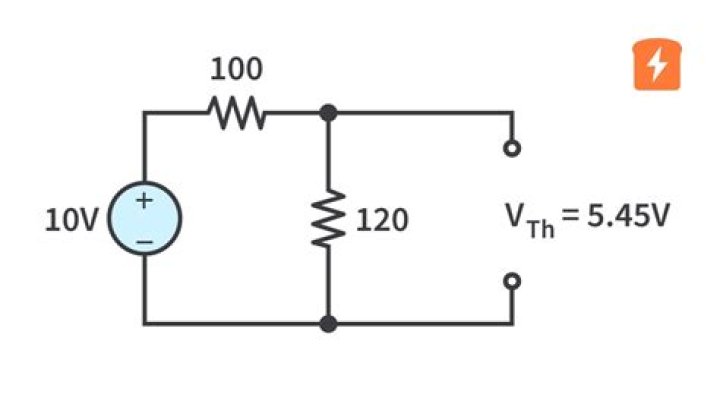

Also Know, what is Thevenin equivalent voltage? The Thevenin-equivalent voltage is the voltage at the output terminals of the original circuit. When calculating a Thévenin-equivalent voltage, the voltage divider principle is useful, by declaring one terminal to be Vout and the other terminal to be at the ground point.
Thereof, where Thevenin theorem is used?
Thevenin's Theorem is especially useful in analyzing power systems and other circuits where one particular resistor in the circuit (called the “load” resistor) is subject to change, and re-calculation of the circuit is necessary with each trial value of load resistance, to determine voltage across it and current
What is the voltage of an open circuit?
The open-circuit voltage, VOC, is the maximum voltage available from a solar cell, and this occurs at zero current. The open-circuit voltage corresponds to the amount of forward bias on the solar cell due to the bias of the solar cell junction with the light-generated current.
Related Question Answers
What are the limitations of Thevenin theorem?
The limitations for Thevenin's theorem are: 1) This theorem is applicable only for linear, bilateral networks. 2) This theorem is valid only for a certain range, because it is applicable for linear circuits only. What is VTH in Thevenin Theorem?
Thevenin's Theorem. Thevenin's Theorem states that “Any linear circuit containing several voltages and resistances can be replaced by just one single voltage in series with a single resistance connected across the load“. What does negative Thevenin resistance mean?
YES, Thevenin Resistance Can Become Negative (Read the reason below) Thevenin circuit is simplified form of a electrical circuit & Thevenin Resistance Sign Negative Doesn't mean that Real Resistance became Negative. also, A positive resistance means that if you increase the voltage, it increases the current. What is the difference between Norton and Thevenin?
What is the difference between Thevenin and Norton theorems? – Norton's theorem uses a current source, whereas Thevenin's theorem uses a voltage source. – Thevenin's theorem uses a resistor in series, while Norton's theorem uses a resister set in parallel with the source. How do you transform a source?
Process. Performing a source transformation consists of using Ohm's law to take an existing voltage source in series with a resistance, and replacing it with a current source in parallel with the same resistance, or vice versa. What is Thevenin's theorem PDF?
Thevenin's theorem. Statement: A linear network consisting of a number of voltage sources and resistances can be replaced by an equivalent network having a single voltage source called Thevenin's voltage ( )Th V and a single resistance called Thevenin's resistance ( )Th R . How do you find Thevenin impedance?
The Thevenin impedance is the impedance looking back from AB with V1 replaced by a short circuit and is therefore a a series-parallel combination. VTh = e = V at degrees. ZTh = ohms at degrees. What is Norton theorem PDF?
Norton's Theorem. Norton's Theorem may be stated under: Any Linear Electric Network or complex circuit with Current and Voltage sources can be replaced by an equivalent circuit containing of a single independent Current Source IN and a Parallel Resistance RN. What is Thevenin's resistance?
The Thevenin resistance is the resistance looking back from AB with V1 replaced by a short circuit. For R1 = Ω, R2. = Ω, R3 = Ω, and voltage V1 = V. What is the function of load resistance?
A load resistor is a resistor that has the sole function of increasing the load resistance of the circuit to a specific level. So that's the “what.” To understand the “what for,” let's look at two ways load resistance can be critical to proper operation of a DC control or communication circuit. How does Thevenin theorem work?
Thevenin's theorem states that any combination of voltage sources and resistors can be replaced with a single voltage source and a single resistor. Thevenin's theorem, thus, greatly reduces and simplifies a circuit. In the end, thevenin's theorem produces a single voltage source, a single resistor, and the load. How do you calculate load current?
Use the Ohm's law formula: Power (watts) = Voltage (volts) x I current (amps). Arrange the equation for three-phase power to solve the current (amps): Current (amps) = power (watts) ÷ voltage (volts) ÷ square root of 3 (1.732) ÷ power factor; I = P ÷ (V_1. What is equivalent voltage?
The equivalent circuit is a voltage source with voltage VTh in series with a resistance RTh. The Thévenin-equivalent voltage VTh is the open-circuit voltage at the output terminals of the original circuit. The resistance is measured after replacing all voltage- and current-sources with their internal resistances. Why we use Norton's Theorem?
The Norton equivalent circuit is used to represent any network of linear sources and impedances at a given frequency. Norton's theorem and its dual, Thévenin's theorem, are widely used for circuit analysis simplification and to study circuit's initial-condition and steady-state response.
