How do I enable CAM standards in Solidworks?

To setup your Machine Post and TECH DB go to C:\\ProgramData\\SolidWorks\\SOLIDWORKS CAM 2019.

CAM Standard \u2013 CAM Standard TBM

1. Once the Technology Database loads please close SOLIDWORKS.
2. From the tabs on the left select settings.
3. If you have a current Database select \u201cBrowse\u201d to link to DATABASE.

Considering this, what is Solidworks CAM standard?

SOLIDWORKS CAM Standard. SOLIDWORKS CAM is a knowledge-based technology that allows you to effortlessly integrate design and manufacturing with top-notch CAM technology. It uses rules-based machining to improve the overall programming process allowing you to focus on critical areas of designing.

Subsequently, question is, what is included in solidworks standard? SOLIDWORKS Standard also includes wizards to automate designs, perform stress analysis, and determine the environmental impact of components. Standard features include: 3D Animations and Basic Rendering: Quickly and easily create powerful images and animations to communicate your design intent and functionality.

Also know, does solidworks have cam?

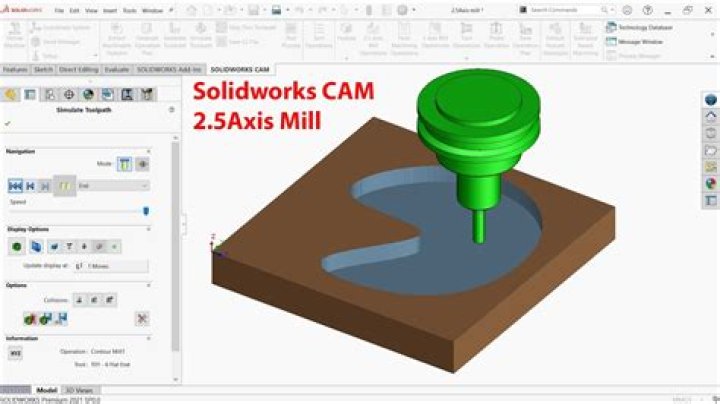

Every user of SOLIDWORKS 2018 on subscription can have SOLIDWORKS CAM Standard at no additional cost. The Pro version, which contains additional features, is still an extra cost add-in. SOLIDWORKS CAM for 2.5-axis milling and turning is powered by long-time SOLIDWORKS partner CAMWorks (click for video).

Is Solidworks CAM any good?

They are all good it just comes down to what you like. I have found CAMWorks to be the best overall. It gets a B+ in almost every area where some of the CAM software options have a solid F in one area, an A+ in another area, and Bs in the other areas. Mastercam can run in solidworks.

Related Question Answers

Is Solidworks CAM free?

Every user of SOLIDWORKS 2018 on subscription can have SOLIDWORKS CAM Standard at no additional cost. SOLIDWORKS CAM for 2.5-axis milling and turning is powered by long-time SOLIDWORKS partner CAMWorks (click for video).

What does solidworks Cam do?

SOLIDWORKS CAM is an add-on to all versions of SOLIDWORKS CAD that lets you prepare your designs for manufacturability earlier in the development cycle. Manufacturing tasks that had to wait until a design was complete can now be performed concurrently with the design process.

Is SolidCAM part of Solidworks?

SolidCAM is a SOLIDWORKS Gold Partner for well over a decade Because SolidCAM is completely integrated with SOLIDWORKS CAD software, we are actually building our CAM programming within SOLIDWORKS."

What is solidworks Visualise?

SOLIDWORKS Visualize is a suite of standalone software tools that combine industry-leading rendering capabilities with design-oriented features and workflows that enable easy and fast creation of visual content for designers, engineers, marketing, and other content creators.

What is mbd in Solidworks?

SOLIDWORKS MBD (Model Based Definition) is an integrated drawing less manufacturing solution for SOLIDWORKS 3D design software. It helps companies define, organize, and publish 3D Product Manufacturing Information (PMI).

Can SolidWorks generate G code?

SolidWorks. SolidWorks is a favorite tool of engineering professionals. Because SolidWorks is only a design application, an additional CAM (computer-aided manufacturing) application or plugin is required to generate toolpaths and G-code that the milling machine can follow to mill the design.

How much does mastercam cost?

Software Price: Depending on the options a user chooses, Mastercam can cost anywhere between $4,000 and $40,000 per seat.

How much does CAMWorks cost?

I can't seem to find my quote, but iirc the yearly fee is around $1,500 for a single seat of camworks.

What are the CAM softwares?

Computer aided manufacturing

How do I get solidworks for free?

In case you don't want to wait for a salesman to contact you, you can register for a free trial of MySolidWorks, the online version of SolidWorks and try the Online Premium Edition anywhere, anytime and on any device through MySolidWorks without any downloading or software installation.

What is the best CAM software?

Here are the overall winners in each feature category for the High End Segment:

• Best CAD Integration & Features: HSMWorks.
• Best Ease of Use: OneCNC.
• Best Toolpaths: Edgecam.
• Best Feature Recognition & Templates: Camworks.
• Best Simulation: Edgecam.
• Best Value: HSMWorks.
• Best 4/5 Axis: Mastercam.

How much is a solidworks license?

The Standard Package: The price for one license of SolidWorks Standard is $3995 with an annual maintenance fee of $1295. Term licenses are also available at $810 per 3 months or $2700 per year.

What is 2.5d milling?

In machining, 2.5D refers to a surface which is a projection of a plane into 3rd dimension – although the object is 3-dimensional, there are no overhanging elements possible. 2.5D objects can be machined on a 3-axis milling machine, and do not require any of the features of a higher-axis machine to produce.

What is Mastercam for Solidworks?

Mastercam for SOLIDWORKS^® is an integrated software solution combining the world's leading CAD with the world's most widely used CAM. Delivers the ease of SOLIDWORKS modeling, assemblies, and drawings with fully associative Mastercam toolpaths.

How does CAM software work?

In order to generate the actual model, CAM works alongside CAD—using CAD designs, CAM uses numerical coding to run the machine that creates the product. A CAD/CAM package allows companies to develop and save their own product designs, and program machines to create the actual component.

How are CNC G codes grouped?

The modal groups for g-codes are: Group 1 (motion): G00, G01, G02, G03, G80, G81, G82, G84, G85, G86, G87, G88, G89. Group 2 (plane selection – XY, YZ, ZX): G17, G18, G19. Group 3 (absolute/incremental mode): G90, G91.

What is solidworks PCB?

SOLIDWORKS® PCB is a set of tools designed to enable powerful and seamless collaboration with mechanical design. Combining the best technology in PCB design with an easy-to-use interface to give you the productivity you need to get your PCBs designed quickly and easily.

Which solidworks version is best?

That being said, if you have a choice, always go with the latest version of SolidWorks. It will have all the latest and greatest features, and you will be able to read any SolidWorks files (from colleagues, customers, friends, etc.)

Is toolbox included in solidworks standard?

SOLIDWORKS Toolbox. SOLIDWORKS Toolbox is a time-saving library of Smart Parts and Supplier Standard Components, fully integrated with SOLIDWORKS. SOLIDWORKS Toolbox is included with SOLIDWORKS Professional and SOLIDWORKS Premium, the premium brand in affordable 3D CAD software.

Is solidworks a one time purchase?

Since its inception in 1995, SOLIDWORKS has been available as a “perpetual license” for about $4K. While it will continue to offer the application with a one-time up-front purchase cost, Dassault Systèmes, SOLIDWORKS' parent, is adding an option to rent the software for three-month or one-year periods.

Is solidworks professional or premium better?

SOLIDWORKS Standard even includes animation. SOLIDWORKS Costing is also included in SOLIDWORKS Professional, which is a huge time-saver for estimating costs. The Premium suite has broader FEA capability, allowing you to do static, stress and motion analysis on assemblies, as well as parts.

Is simulation included in solidworks professional?

The Linear Static Simulation included with SOLIDWORKS Premium also provides access to the breadth of mesh capabilities including Solid, Shell, and Beam meshing. As an option from upgrading your SOLIDWORKS Professional, or Standard seat to SOLIDWORKS Premium, you can add Simulation Standard.

What is the difference between solidworks standard and professional?

SOLIDWORKS Standard even includes animation. The Professional suite adds photo-realistic rendering capability and eDrawings Professional (which allows you to send SW files to a client or customer who does not have SOLIDWORKS and gives them the ability to open and read the file, extract dimensions and mark it up, etc.).

Does solidworks premium include visualize?

SOLIDWORKS Visualize Standard comes complimentary with every license of SOLIDWORKS Professional and SOLIDWORKS Premium that is purchased with Subscription. This complimentary seat of SOLIDWORKS Visualize Standard can be given to anyone in your company!

What comes with solidworks professional?

SOLIDWORKS Professional. SOLIDWORKS Professional includes libraries of standard parts and fasteners, tools to help utilize imported geometry, and utilities that search designs for errors.
